Punches & Dies Cleaning Machine
Punches & Dies Maintenance

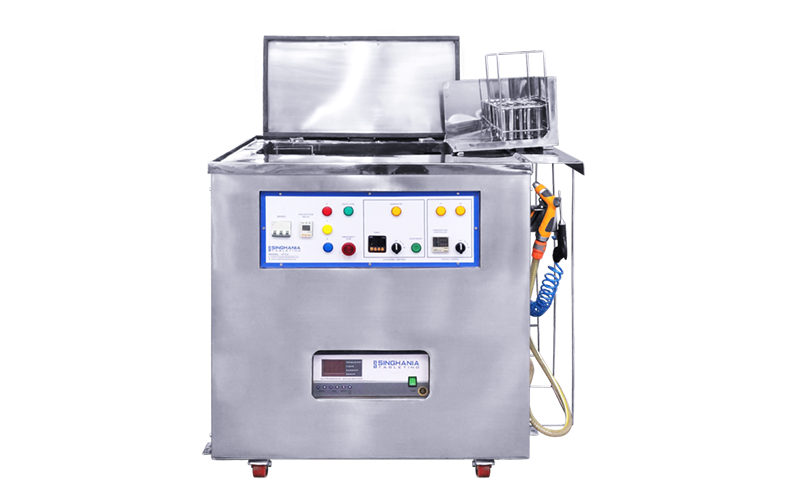

Ultrasonic Tool Cleaner
Good tooling maintenance starts with effective cleaning. The Ultrasonic Tool Cleaner is designed specifically for tablet compression punches and dies, using ultrasonic action to remove lubricants, product residues and fine particles - including from recessed areas that can be difficult to clean manually.
Our Ultrasonic Tool Cleaner is the most effective and efficient method for cleaning punches & dies and tablet press parts. A regular cleaning routine with it ensures longevity and efficient performance of tableting tools.
Advantages
• Most thorough method of cleaning.• Ensures accurate assessment and consistent cleaning of tools without manual intervention.
• Reduces deterioration or damage to delicate surfaces.
• Cleans intricate areas like embossing, upper punch key ways, inside of die Reduces cleaning time.
• Reduces chances of damage as manual handling is minimised.
• Improves tooling life drastically.
Stainless Steel Tooling Basket
The Stainless Steel Tooling Basket has been designed to save time, reduce handling and prevent tool damage. It provides secure handling
of tooling from Tablet Press to the Cleaning System to Storage Shelf. The baskets can also be used for storage along with plastic box.
Main Features
• Cycle time of 5 to 15 minutes.• Timer controller.
• Temperature controller.
• Tank suitable for Tooling Basket.
Key Features
• Ultrasonic cleaning technology for thorough and gentle cleaning• Removes residues from all tooling surfaces including recesses
• Reduces manual cleaning effort and time
• Extends tooling life by preventing contamination-related wear
• Suitable for all standard punches and dies
• Stainless steel tank construction for pharmaceutical compliance
TECHNICAL DETAILS
| PARTICULAR | UTC1 | UTC2 |
|---|---|---|
| Capacity: D / B Tooling (SETS) | 23 / 33 | 44 / 62 |
| Number of Baskets | 1 | 2 |
| Ultrasonic Power (Watt) | 750 | 1250 |
| Digital Timer for Ultrasonic | Yes | Yes |
| Heater (Watt) | 1500 x 2nos | 3500 x 2nos |
| Digital Temperature Controller | Yes | Yes |
| Float Switch for min water level | Yes | Yes |
| Rinsing Jet | Optional | Yes |
| Air Gun for Drying (with FRL) | Optional | Yes |
| Tank Size (L X B X H mm) | 500 x 300 x 300 | 650 x 335 x 350 |
| Water Consumption (Litres per fill) | 32 | 47 |
| MOC – Tank | S.S. 316L | S.S. 316L |
| MOC – Structure & Outer Panels | S.S. 304 | S.S. 304 |
| Inlet Valve | No | Yes |
| Drain Valve | Yes | Yes |
| Overflow Port | Yes | Yes |
| Sloped Bottom for easy draining | Yes | Yes |
| Machine Size (L X B X H mm) | 950 x 700 x 1500 | 1300 x 770 x 1750 |
| Net Weight (kgs) | 100 | 120 |
