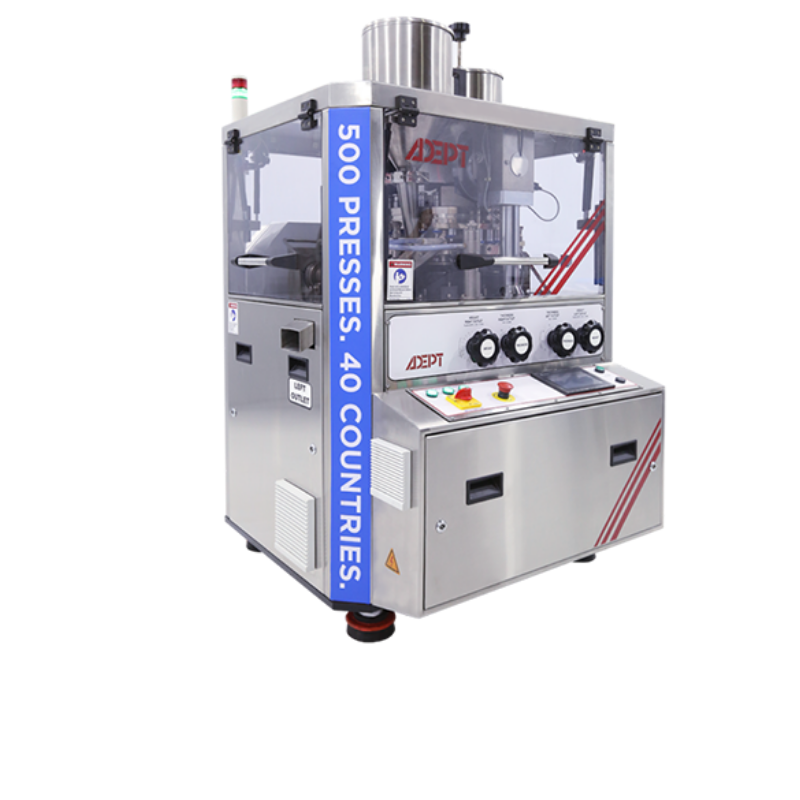

Adept ADR - 27 to 45 Station Tablet Press
Adept Tablet Press
The ADEPT ADR is available in 27 and 45 station configurations for pharmaceutical manufacturers looking for dependable mid-volume tablet production. The press combines a practical production format with PLC + HMI control and features designed for routine manufacturing use.
The ADEPT ADR is available in 27 and 45 station configurations for pharmaceutical manufacturers looking for dependable mid-volume tablet production. The press combines a practical production format with PLC + HMI control and features designed for routine manufacturing use.
SALIENT FEATURES
• 100kN Pre & 100kN Main Compression if used as Single Side • Food Grade Multi-chamber Gravity Feeder -Minimum Weight Variation at High SpeedOPTIONAL FEATURES
• Force Measurement System• Auto Rejection
• 21cfr part 11 Compliance
• AWC with Servo Motorized Control
• Bilayer Attachment with Automatic 1st layer Sampling
STANDARD FEATURES
• VFD Drive for Main Motor• Turret is Electroless Nickle Plated
• Ball Spring Plugs for L.P. Locking
• Front Control System for Setting Tablet Parameters
• Auto Lubrication System
• Bi-Layer Readiness
KEY FEATURES
• Available in 27 and 45 station configurations• Medium-scale production output
• PLC + HMI control system
• Auto lubrication system
• Force feeder with jamming sensor
• Electroless nickel plated turret
• Optional force measurement system and 21 CFR Part 11 compliance
TECHNICAL DETAILS
| Model | Stations | Round Tablet | Caplet | Max Pressure | Punch | Die | Tablet Output |
|---|---|---|---|---|---|---|---|
| (Max Dia.) | (Max Length) | (Per Hour) | |||||
| 38 rpm | |||||||
| ADR D-D-27 | 27 | 25 | 25 | 10 | D | D | 1,23,120 |
| ADR D-B-33 | 33 | 22 | 22 | 10 | D | B | 1,50,480 |
| ADR B-B-35 | 35 | 18.5 | 19 | 6.5 | B | B | 1,59,600 |
| ADR B-BB-45 | 45 | 13 | 16 | 6.5 | B | BB | 2,05,200 |
| ADR 15D+15B | 15+15 | 25 | 25 | 10 | D+B | D+B | 68,400 |
