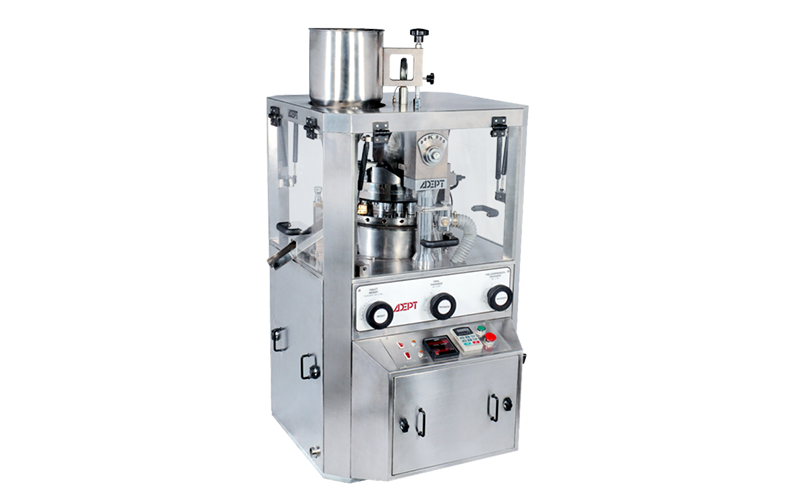

Adept ASR - 20 to 32 Station Tablet Press
Adept Tablet Press
The ADEPT ASR is a pilot-scale tablet press available in 20 and 32 station configurations. It is intended for manufacturers moving from R&D to pilot production and provides a practical platform for working with process parameters before full-scale manufacturing.
SALIENT FEATURES
• Centrally Driven Without Gear on Turret• Three Paddle Force Feeding System
• Food Grade Multi-chamber Gravity Feeder -Minimum Weight Variation at High Speed
• Dwell Time Display in HMI
STANDARD FEATURES
• VFD Drive for Main Motor & FF Motor• Turret is Electroless Nickle Plated
• Ball Spring Plugs for L.P. Locking
• Auto Lubrication System
OPTIONAL FEATURES
• Force Measurement System• Auto Rejection & Sampling
• 21cfr part 11 Compliance
• AWC with Servo Motorized Control
• Turret with SS 316 Die Plate for Corrosive Products
KEY FEATURES
• Available in 20 and 32 station configurations• Pilot-scale production capability
• Compatible with B type tooling
• PLC-based control system with HMI
• Force measurement system
• Easy tooling changeover for product flexibility
TECHNICAL DETAILS
| Model | Stations | Round Tablet (Max Dia.) |
Caplet (Max Length) |
Max Pressure | Punch | Die | Tablet Output (Per Hour) |
|---|---|---|---|---|---|---|---|
| 50 rpm | |||||||
| ASR D-D-20 | 20 | 25 | 25 | 10 | D | D | 60,000 |
| ASR D-B-26 | 26 | 22 | 22 | 10 | D | B | 78,000 |
| ASR B-B-26 | 26 | 18.5 | 19 | 6.5 | B | B | 78,000 |
| ASR B-BB-32 | 32 | 13 | 16 | 6.5 | B | BB | 96,000 |
| ASR 10D+10B | 10+10 | 25 | 25 | 10 | D+B | D+B | 30,000 |
