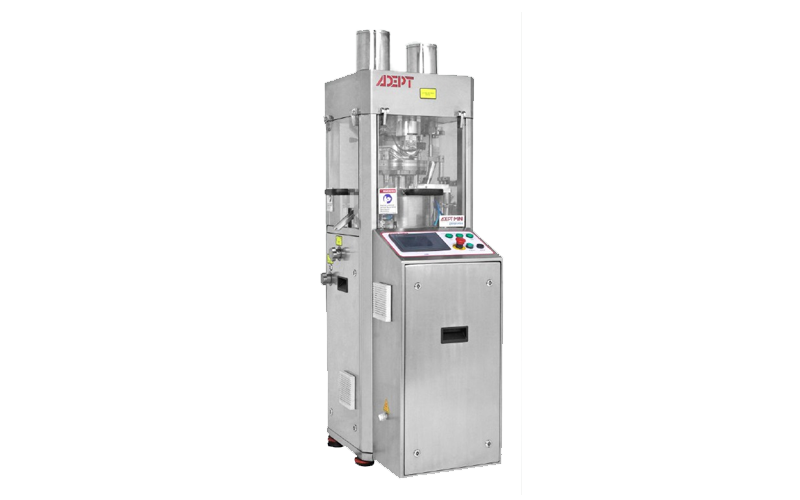

Adept ATR [BL] - Bi-Layer R&D Press
Adept Tablet Press
The ADEPT ATB-BL is a bi-layer R&D tablet press developed for formulation work and testing of bi-layer products. It allows users to monitor and control the compression force and weight of each layer independently, providing useful process information for subsequent scale-up.
SALIENT FEATURES
• Centrally Driven Without Gear on Turret• 20kN Pre compression & 65kN Main Compression
• Upper & Lower Rollers on Bearing
STANDARD FEATURES
• PLC + HMI Control• Electroless Nickle Plated Turret
• Pneumatic Auto 1st layer Sampling
KEY FEATURES
• Bi-layer tablet compression for R&D• Independent layer weight and force monitoring
• Sampling of first layer before second layer compression
• HMI control with process data recording
• Compact bench-top or floor-standing design
• Compatible with standard B-type tooling
OPTIONAL FEATURES
• Force Measurement System• Tablet Rejection & Sampling
TECHNICAL DETAILS
| Model | Stations | Round Tablet (Max Dia.) |
Caplet (Max Length) |
Max Pressure | Punch | Die | Tablet Output (Per Hour) |
|---|---|---|---|---|---|---|---|
| 30 rpm | |||||||
| ATR BL D-D-9 | 9 | 25 | 25 | 6.5 | D | D | 16,200 |
| ATR BL B-B-11 | 11 | 19 | 19 | 6.5 | B | B | 19,800 |
| ATR BL 5D+5B | 5D + 5B | 25 | 25 | 6.5 | D + B | D + B | 9,000 |
