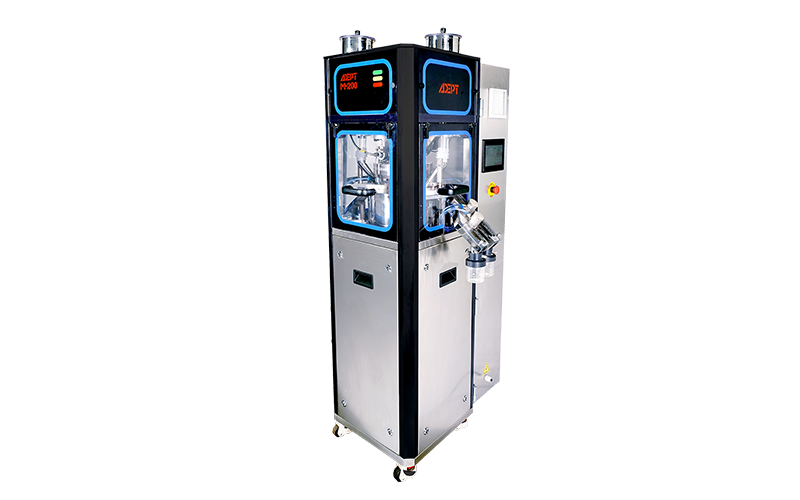

Adept M200 - Fully Automated Bi-Layer R&D Press

The ADEPT M200 is a fully automated bi-layer tablet press developed for research and development applications. It allows formulation teams to develop and optimise bi-layer products while monitoring layer weights and compression performance before moving toward larger-scale production.

SALIENT FEATURES

• Centrally Driven Without Gear on Turret
• 20kN Pre compression & 65kN Main Compression
• Upper & Lower Rollers on Bearing
• Dwell Time Display in HMI

STANDARD FEATURES

• Force Measurement System
• AWC with Servo Motorized Control
• Tablet Rejection & Sampling
• 21cfr part 11 Compliance
• Electroless Nickle Plated Turret with SS316 Die Plate
• Pneumatic Auto 1st layer Sampling

OPTIONAL FEATURES

• Lower Punch Spray System for Effervescent Tablets
• “CE” Certification

KEY FEATURES

• Fully automated bi-layer tablet compression
• Precise first-layer weight control with automatic sampling
• Force measurement for both layers
• HMI with comprehensive data logging
• 21 CFR Part 11 compliance
• Suitable for a wide range of formulations
• Compact R&D design with production-representative performance

TECHNICAL DETAILS

Model	Stations	Round Tablet (Max Dia.)	Caplet (Max Length)	Max Pressure	Punch	Die	Tablet Output (Per Hour)
							30 rpm
ATR BL D-D-9	9	25	25	6.5	D	D	16,200
ATR BL B-B-11	11	19	19	6.5	B	B	19,800
ATR BL 5D+5B	5D + 5B	25	25	6.5	D + B	D + B	9,000
