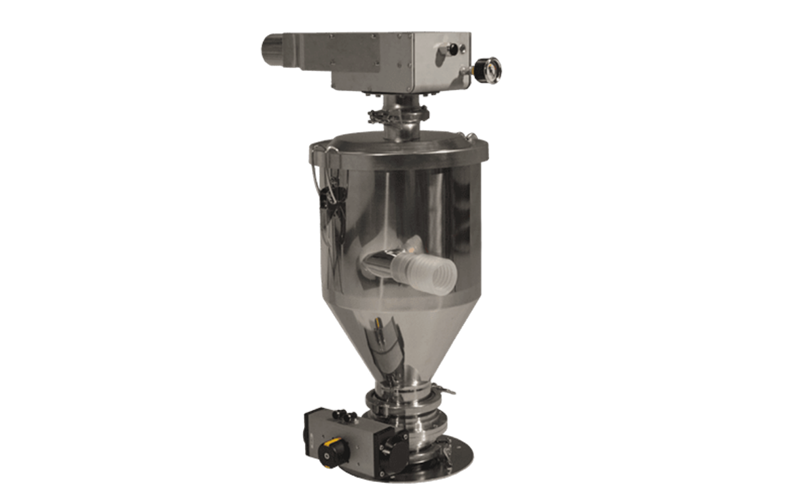

Powder Transfer System – Venturi Type
OTHER EQUIPMENTS
The Venturi Type Powder Transfer System provides a pneumatic method of transferring pharmaceutical powders from storage containers to tablet press hoppers. Because the transfer principle does not require moving mechanical parts in contact with the product, it offers a simple approach to contained powder handling.
Our tool storage box is a simple and safe storing system for Punches & Dies. Made of poly-propylene, the box prevents damage during storage. The tool storage box is available for ‘D’, ‘B’ and ‘BB’ tooling.
SALIENT FEATURES
• Eliminates manual loading of powder, no dust contamination• Eliminates buIky & space consuming blower system
• Compact in size
• Easy to mount on existing press
• Control of Suction / Discharge / Purging Cycle Time to suit varying RPM, Bulk Density / Flow Properties of granules
OTHER FEATURES
• Loading units made of SS 316 Steel• Capacitive powder level sensor provision to prevent overflow & jamming
• Auto Purging (Filter bag shaker)
• Filter bag made of Antistatic Polyester
Key Features
• Venturi-based pneumatic powder transfer• No moving parts in contact with product
• Minimizes product degradation during transfer
• Dust-free and contained powder handling
• Suitable for fine pharmaceutical powders and granules
• Easy to clean and maintain
• Compliant with GMP requirements
Technical Details
| OPERATING TEMPERATURE | ( o C) +0 / +60 |
|---|---|
| CAPACITY | 500kg/hr |
| WEIGHT | 22kg |
| PROTECTION CLASS | IP 54 |
| AIR PRESSURE | 5-6 BAR |
| AIR CONSUMPTION AT 6 BAR (NL/MIN) | 700 |
| NOISE LEVEL (dB) | 60 – 62 |
| MINIMUM PRODUCT GRANULOMETRY(µM) | >1 |
