Elevating De - Duster
OTHER EQUIPMENTS

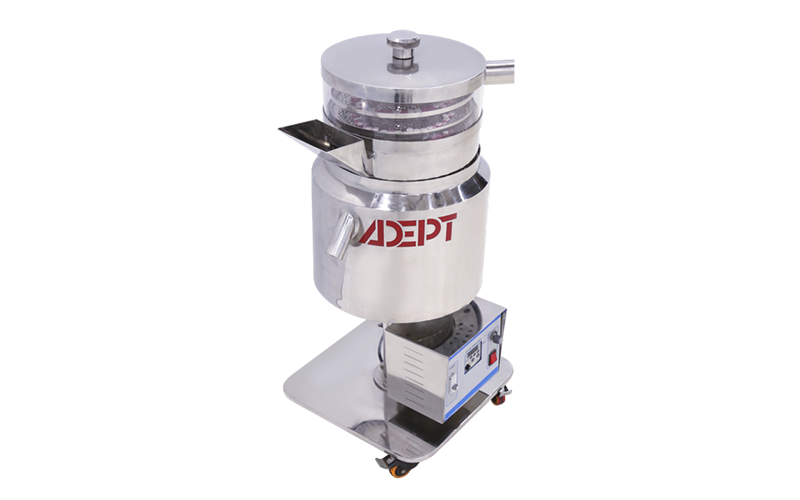

The Elevating De-Duster combines tablet conveying and dedusting in a single unit. Installed after compression, it removes loose powder and surface dust while gently elevating the tablets for the next stage of processing or packaging.
SALIENT FEATURES
• Compact design with small footprint• S. construction to meet GMP norms
• In-built orientation of charging and discharging
• Discharge chute can be rotated to suit Tablet Press outlet
• Quick dismantling and assembling (within 1 min.)
• S. 316 contact parts
• Low maintenance
• PU wheels with S.S. Body
• Vacuum connection to increase de-dusting efficiency
Key Features
• Combines tablet elevation and dedusting in one unit• Removes surface dust and loose powder from compressed tablets
• Adjustable incline for efficient tablet conveyance
• Gentle handling to avoid tablet damage or chipping
• Easy access for cleaning between product batches
• Compatible with various tablet sizes and shapes
• Stainless steel contact parts for pharmaceutical compliance

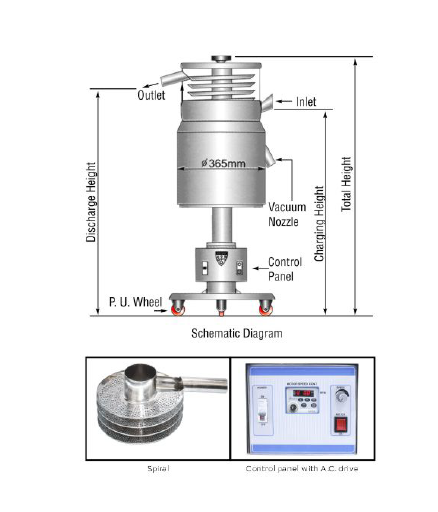

TECHNICAL DETAILS
| TYPE | AED S 4-Dish |
|---|---|
| Inlet Height | 775 to 975mm |
| Outlet Height | 775 to 975mm |
| Output (6mm Tablet) | 325000 |
| Tablet Diameter – Minimum | 5mm |
| Maximum | 40mm |
| Dedusting Length (approx) | 2.25m |
| Speed | Adjustable |
| Inlet Chute Size | 130 x 100mm |
| Outlet Chute Diameter | 50mm |
| Motor Specifications | 0.25HP/3PH/50Hz x 2 nos |
| Power Supply | 220V/1PH |
| Machine Size (L x B x H cm) | 45 x 60 x 95 |
| Net Weight (kgs) | 75 |
